Commercial Scalable Fault Isolation

September 12, 2019

Download Case Study

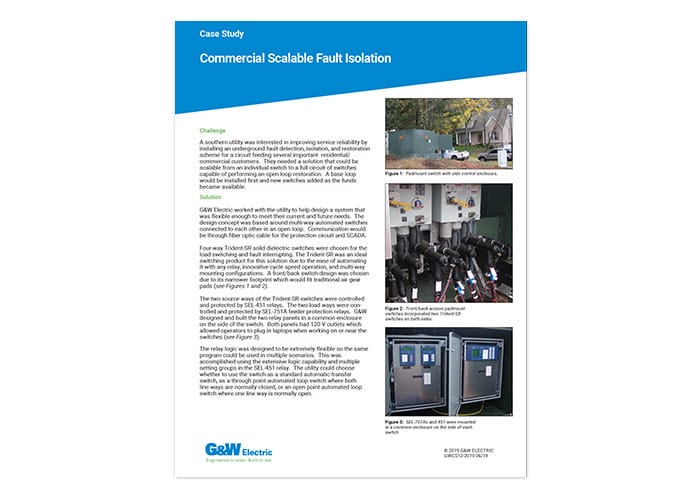

Case Study cover

CHALLENGE:
A southern utility was interested in improving service reliability by installing an underground fault detection, isolation, and restoration scheme for a circuit feeding several important residential/commercial customers. They needed a solution that could be scalable from an individual switch to a full circuit of switches capable of performing an open loop restoration. A base loop would be installed first and new switches added as the funds became available.

SOLUTION:
G&W Electric worked with the utility to help design a system that was flexible enough to meet their current and future needs. The design concept was based around multi-way automated switches
connected to each other in an open loop. Communication would be through fiber optic cable for the protection circuit and SCADA.

Four-way Trident®-SR solid dielectric switches were chosen for the load switching and fault interrupting. The Trident-SR was an ideal switching product for this solution due to the ease of automating it with any relay, innovative cycle speed operation, and multi-way mounting configurations. A front/back switch design was chosen due to its narrower footprint which would fit traditional air gear pads (see Images 1 and 2).

The two source ways of the Trident-SR switches were controlled and protected by SEL-451 relays. The two load ways were controlled and protected by SEL-751A feeder protection relays. G&W Electric designed and built the two relay panels in a common enclosure on the side of the switch. Both panels had 120 V outlets which allowed operators to plug in laptops when working on or near the switches (see Image 3).

The relay logic was designed to be extremely flexible so the same program could be used in multiple scenarios. This was accomplished using the extensive logic capability and multiple setting groups in the SEL-451 relay. The utility could choose whether to use the switch as a standard automatic transfer
switch, as a through point automated loop switch where both line ways are normally closed, or an open point automated loop switch where one line way is normally open.

When in the automated loop settings, each switch only communicated with the switches on either side of it. That meant there was no physical limit to the number of switches in the restoration circuit. This innovative control design allowed the utility to build their automation loops one switch at a time and add future switches as their budget permitted. It also provided a common switch design with single stock code which simplifed future replacement requirements and training for their maintenance and installation crews.

The communication method for the protection circuit and SCADA system was single-mode fiber optic cable and SEL 2829 transceivers. This communication network was used to allow critical information to be passed between switches to automatically isolate faults and restore power in a minimal amount of time without having to dispatch crews. This “smart switching” scheme is one of the most advanced technologies on the market and has been implemented by utilities worldwide who wish to provide the best service reliability to their customers. When a fault is sensed, the relay trips the closest fault interrupter and disables the tripping of the other line way fault interrupter to maintain power to the loads. Next, a Mirrored Bits® signal is sent from the interrupting switch toward the open point. If the next switch in the line is closed, the signal will tell it to open to isolate the faulted line. The signal is passed down the network from switch to switch until it encounters the open point. When the signal is received by the open point switch, it closes to restore power. This allows for an unlimited number of switches to be in the protective circuit and still maintain fast and effective isolation and restoration.

CONCLUSION:
The scheme was tested and its operation witnessed by the customer at G&W Electric’s headquarters facility in Illinois. The initial phase has been installed and is up and running. It has inspired other utilities in the region to use a very similar scheme for their automated loops.
