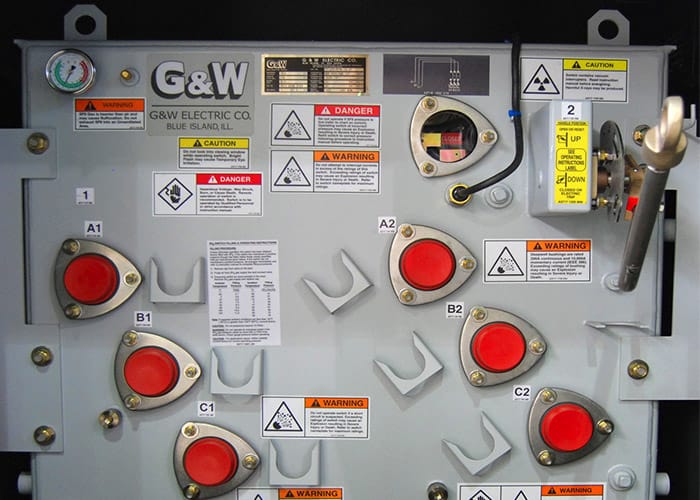

PNI Load Break & Fault Interrupting Switchgear

Features and Benefits

• Construction – Available with front accessible switch operators and bushings or with front and back operators and bushings for replacement of existing pad mount air or oil insulated equipment. Vault construction is also available with top or bottom bushings or top access to operators and bushings.

• Fault Interrupting – Three phase fault interrupting up to 25kA with selectable industry curves including fuse emulation curves.

• Seismically Certified – The switches are available for order designed per the guidelines of ASCE (American Society of Civil Engineers) standard 7-05 Chapter 13. These guidelines cover the design of non structural components installed in a building. The switches also underwent a test regime specified by ICC-ES-AC-156 (International Code Council Evaluation Services Acceptance Criteria) which specifies the shaker table test inputs applied to the switches. Certified for use in OSHPD (Office of Statewide Health Planning and Development) projects for healthcare facilities in the State of California. The OSHPD application number on file is OSP-0157-10.

• Visible Break – Load break ways are equipped with visible break to view the open and closed positions.

• Voltage Sensing – All ways are available with integral voltage sensing for use with voltage indication panel to determine in-phase condition or for use with a relay with up to 1% accuracy.

• Automation – Available for motor automation with portable or permanently mounted motor and controls. A variety of relays such as SEL, ABB, and GE are available with G&W Electric programming and cabinet construction. Cabinets can be ordered in a low voltage enclosure for padmount, pedestal or IP68 rated submersible for vault installed switchgear. Programming for automatic source transfer, protection, or LaZer custom solutions are available.
