Since their introduction in 1940, Sodertite Terminations are high quality, factory sealed cable terminations designed for maximum reliability. Sodertite terminations continue to prove the superiority of their design in an increasing number of field installations. The terminations will accept low pressure oil and gas filled cables as well as all solid dielectric and paper insulated single and three conductor cables on distribution systems up to 46kV. Sodertite terminations are designed and tested in accordance with IEEE-48, 1975 standards for Class 1 terminations.

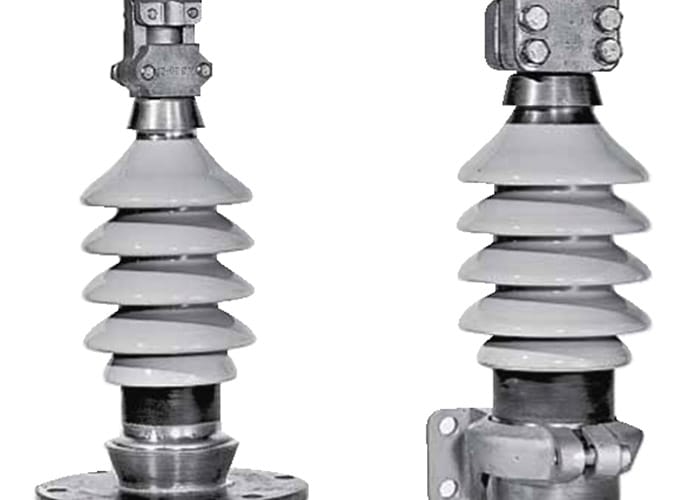

Sodertite Terminations
Features and Benefits
-
Maximum external insulation – Exclusive metal-to-porcelain soldered joints which eliminates the need for gaskets and reduces installation time
-
Reliable stress control – Reliable stress control – Stress relief cone kits consisting of insulating tapes and shielding braid are available as an insulating medium depending upon the application.
-
Maximum external insulation – The highest grade, wet process porcelain provides excellent mechanical strength and electrical characteristics. The large diameter petticoat design is combined with an external conducting glaze between the bottom petticoat.
