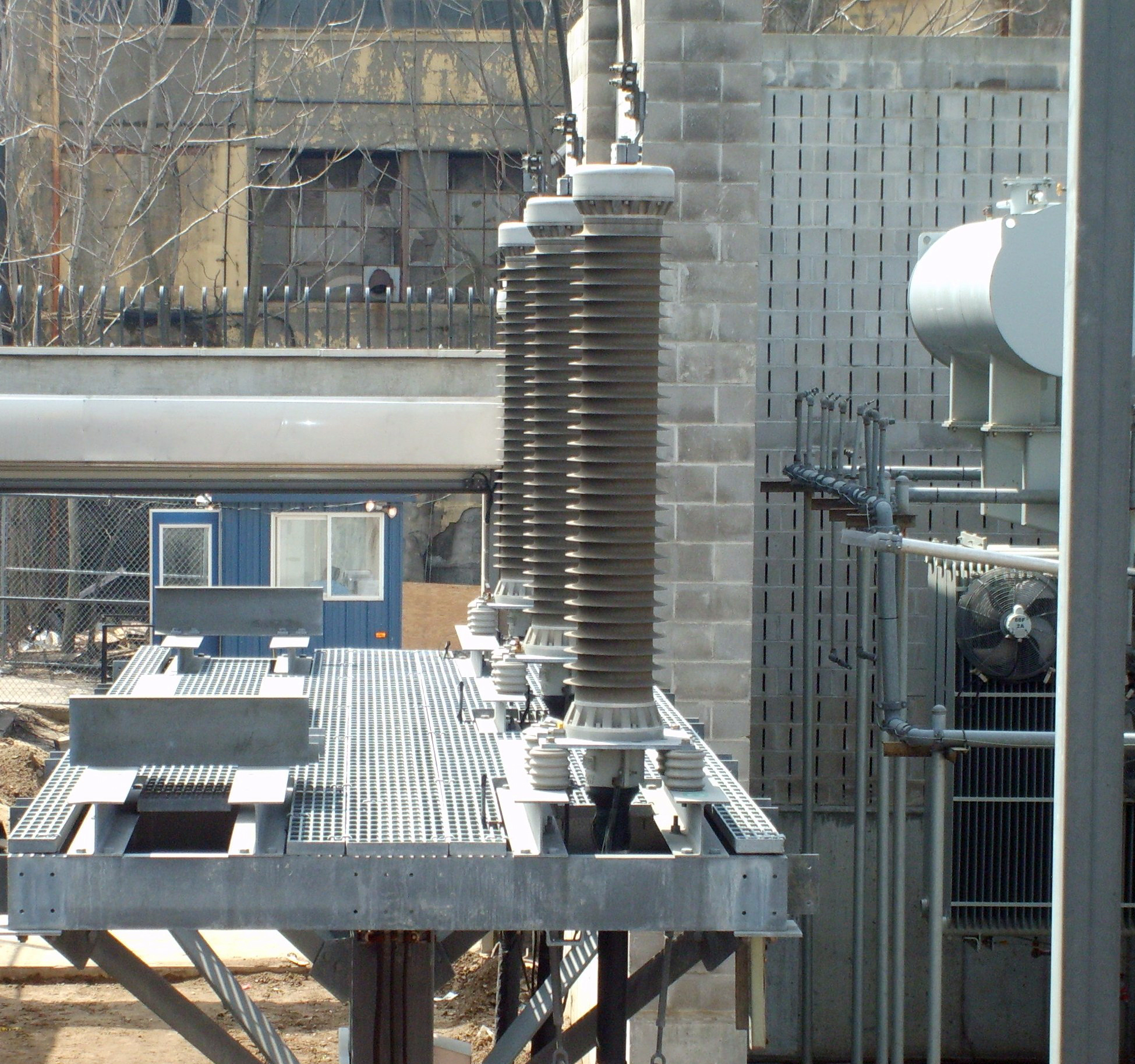

Python® Outdoor PAT Style Termination

Python® outdoor PAT style transmission terminations are designed for solid dielectric cable systems from 72.5kV to 550kV IEC (69kV to 500kV IEEE). Typically used in high-voltage applications and substations.

Email Your Specs

Features and Benefits

  • Stress Cone: Factory molded and 100% tested

  • Suitable for XPLE and EPR insulated cables

  • 230kV, 345kV, and 500kV are prequalified and type tested per IEC 62067

  • Available with mechanical shrink technology for ease of installation

Application Range

Conductor MaterialConductor SizeInsulation Diameter**
72.5kV/69kV
Copper240mm²-2000mm²
(500kcmil-4000kcmil)		40.5mm-93.2mm
(1.59 in.-3.67 in.)
Aluminum*240mm²-2000mm²
(500kcmil-4000kcmil)
145kV/138kV
Copper240mm²-2000mm²
(500kcmil-4000kcmil)		43-106.5mm
(1.69 in.-4.19 in.)
Aluminum*240mm²-2000mm²
(500kcmil-4000kcmil)
170kV/161kV
Copper240mm²-1600mm²
(500kcmil-4000kcmil)		43-106.5mm
(1.69 in.-4.19 in.)
Aluminum*240mm²-1200mm²
(500kcmil-4000kcmil)
245kV/230kV
Copper400mm²-2500mm²
(750kcmil-5000kcmil)		65mm-124.9mm
(2.55 in.-4.92 in.)
Aluminum*400mm²-2500mm²
(750kcmil-5000kcmil)
362kV/345kV
Copper800mm²-2500mm²
(1500kcmil-5000kcmil)		104mm-133.5mm
(4.1 in.-5.26 in.)
Aluminum*800mm²-2500mm²
(1500kcmil-5000kcmil)
550kV/500kV
Copper800mm²-2500mm²
(1500kcmil-5000kcmil)		104mm-133.5mm
(4.1 in.-5.26 in.)
Aluminum*800mm²-2500mm²
(1500kcmil-5000kcmil)
*Aluminum conductors larger than 1200mm² (2500 kcmil) may require special conductor connection provisions. Contact your G&W Electric representative for additional cable sizes.
  • Dielectric fluid volume compensating system
  • Base plate drain valve
  • Arcing horns
  • Cable suspension grips
