G&W Electric LPP joints rated up to 345kV are designed for pipe-type high pressure fluid filled (HPFF), 3-core cables with laminated polypropylene paper (LPP) or paper insulation, handling rated fluid-filled cable pressures up to 400 psi.
69kV-345kV
G&W Electric LPP joints rated up to 345kV are designed for pipe-type high pressure fluid filled (HPFF), 3-core cables with laminated polypropylene paper (LPP) or paper insulation, handling rated fluid-filled cable pressures up to 400 psi.

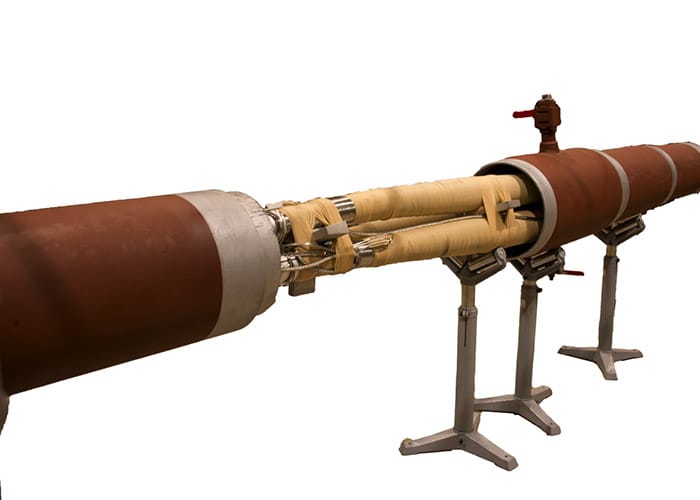

Joint features a field-machined (FM) connector and a field-applied, LPP/paper-insulated body, including cable insulation “stepping” at the connector and stress control slopes at ground electrodes.
Qualified per IEEE 404-12 at 345kV system voltage level.
All necessary construction materials and parts are supplied with each kit, including tapes, carbon steel casings, reducers and cable supports (spiders).
345kV-rated joint can fit in a typical 18’x6’ manhole.
Every joint is custom designed and engineered for the specific cable system requirements and field constraints.
Need more information? Contact the rep in your area.
