Capnut Terminations

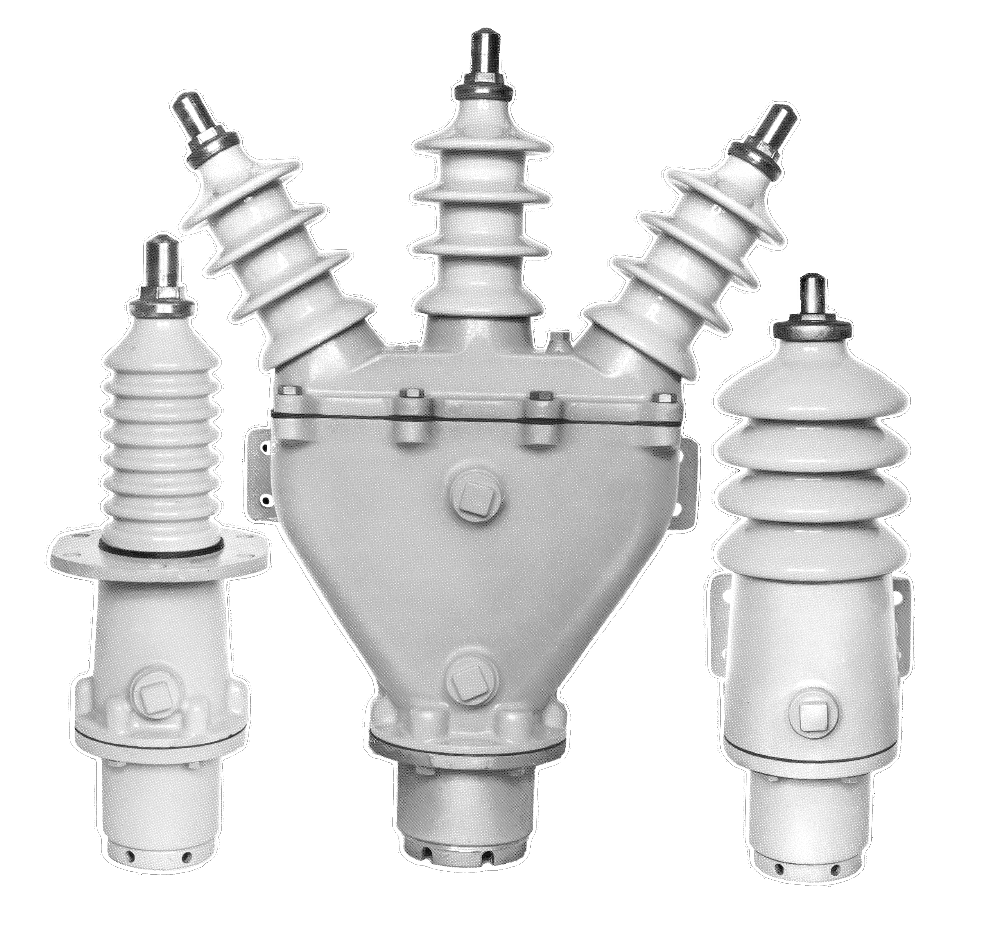

Capnut Terminations are designed to be used where underground cables are connected to generators, switchgear, transformers, overhead lines or sectionalizing equipment. All terminations are tested in accordance with IEEE 48, 1975.

Used to terminate insulated cables connected to generators, switchgear, transformers, overheads lines, or sectionalizing equipment.

Email Your Specs

Features and Benefits

  • Single conductor units in ratings of 15kV, 25kV, 34.5kV, and 46kV

  • Bracket and flange mount models for pole or equipment mounting

  • Modular design allows for customization based on application and cable design

  • Three conductor units are rated 15kV, 25kV, and 34.5kV

  • Accepts any construction of solid dielectric, paper insulated or armored cable

  • Tape stress cone allows for field adaption when working with legacy cable systems where information may be limited

Ratings Chart for Capnut Terminations

Voltage152534.546
BIL (kV)110150200250
Current RatingSame as cableSame as cableSame as cableSame as cable
1 minute dry, ac (kV)506590120
6 hour dry, ac (kV)355575100
10 second wet, ac (kV)456080100
15 minute dry, dc (kV)75105140170

Accessories Chart for Capnut Accessories

Cable TypeWSWSV-CCWSV-ACWSV-WAFRSRSF-CCRSF-ACRSF-WAFRSADPDP-CCDP-EE-ACDP-EE-WAF
PILC
VCLC
RILC		1 or 3 Conductor3 Conductor1 or 3 Conductor3 Conductor3 Single Conductors3 Single Conductors
EPR
XLP		1 or 3 Conductor3 Conductor3 Single Conductors3 Single Conductors
High mole Polyethylene and Kerits1 or 3 Conductor MAY REQUIRE TUBE SEAL3 Conductor MAY REQUIRE TUBE SEAL3 Single Conductors MAY REQUIRE TUBE SEAL3 Single Conductors MAY REQUIRE TUBE SEAL
Flat Steel Armored3 Conductor3 Conductor1 or 3 Conductor
Interlocked* Armor3 Conductor
Wire Armor3 Conductor3 Conductor1 or 3 Conductor
Type CCE Split Conduit Extension Adaptable√√√√√√√√√
*Application on cable with a solid jacket under the armor. For cables with a jacket over the armor, a cable entrance fitting combination (DP3-EE-EE-GL-ACC-DP-1) can be used.
Aerial Lugs Accessories include: Style 3-D Clamp style, Style 8 Bertial 4 hole and Style 18 Horizontal Bus style
Novoid Accessories include: Novoid A and Novid X for use with PILC Cable, Novoid A and Novoid 224 for use with XLPE/EPR.
Novoid 224 not applicable with PILC Cable. Novoid X not applicable with XLPE/EPR.
