GIS Termination

ATL-A-SF GIS Termination

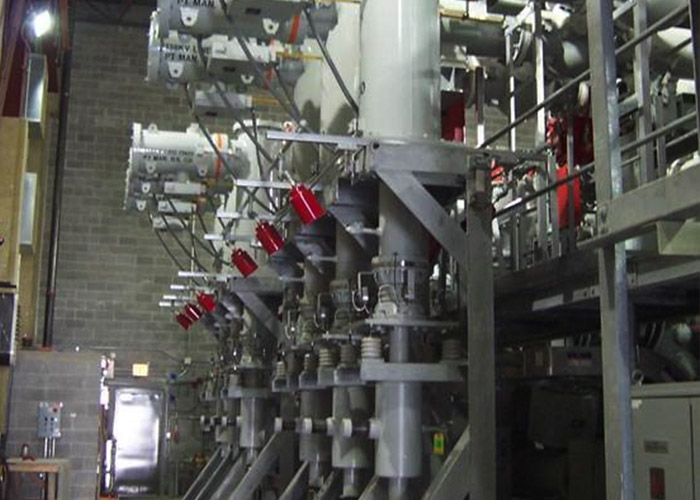

ATL-A-SF GIS Terminations are designed to meet the dimensional requirements in IEC 60859 standards for high voltage GIS. These terminations, based on the proven ATL style, ensure interchangeability and seamless integration into self-contained cable systems with enhanced functionality and ease of installation.

Configurations not applicable

Email Your Specs

ATA-N-style Transmission Terminations

Operating Voltage-kVCatalog NumberBIL-kVMax Conductor Size-kcmilCreepage Distance-in. (mm)Shipping Weight-lbs (kg)Approximate Oil Volume-Gal (L)
69ATA119N350200052 (1321)600 (272)2 (8)
69ATA110N350350061 (1549)650 (295)7 (27)
115ATA139N550150080 (2032)800 (363)8 (30)
115ATA130N550350098 (2489)900 (408)8 (30)
138ATA149N650150098 (2489)900 (408)11 (42)
138ATA140N6503500120 (3048)1100 (499)12.5 (48)
161ATA159N7501500120 (3048)1100 (499)12.5 (48)
161ATA150N7503500138 (3505)1250 (567)15 (57)
230ATA160NC10503500205 (5221)2200 (998)22 (84)
345ATA180NC13003500236 (5995)3500 (1589)50 (190)
NOTE: Catalog codes listed are for 200psi nominal operating pressure, add -HS to catalog code to indicate 300psi nominal operating pressure, add -EHS to catalog code to indicate 400psi nominal operating pressure.

Low/Med Press Fluid Filled Cables

Operating VoltageBILMax Conductor SizeCatalog NumberStandard
138kV650kV3000kcmilATL140N-SFIEEE1300
230kV1050kV3000kcmilATL160N-SFIEEE1300
115kV550kV4000kcmilATL130A-SFIEC60859
138kV650kV4000kcmilATL140A-SFIEC60859
161kV750kV3200kcmilATL150A-SFIEC60859
Catalog number modifiers based on operating pressure rating
15psiNo modifier, example ATL119N-SF
40psiCatalog Number-HS, example ATL119N-SF-HS
100 psiCatalog Number-EHS, example ATL119N-SF-EHS
