For self-contained and pipe type cable systems, GIS terminations are designed in accordance with IEEE 1300 standards for application in gas insulated substations rated 138 through 345kV. Termination designs are available for application on single conductor, low-pressure self-contained, or high-pressure pipe type fluid filled cables.

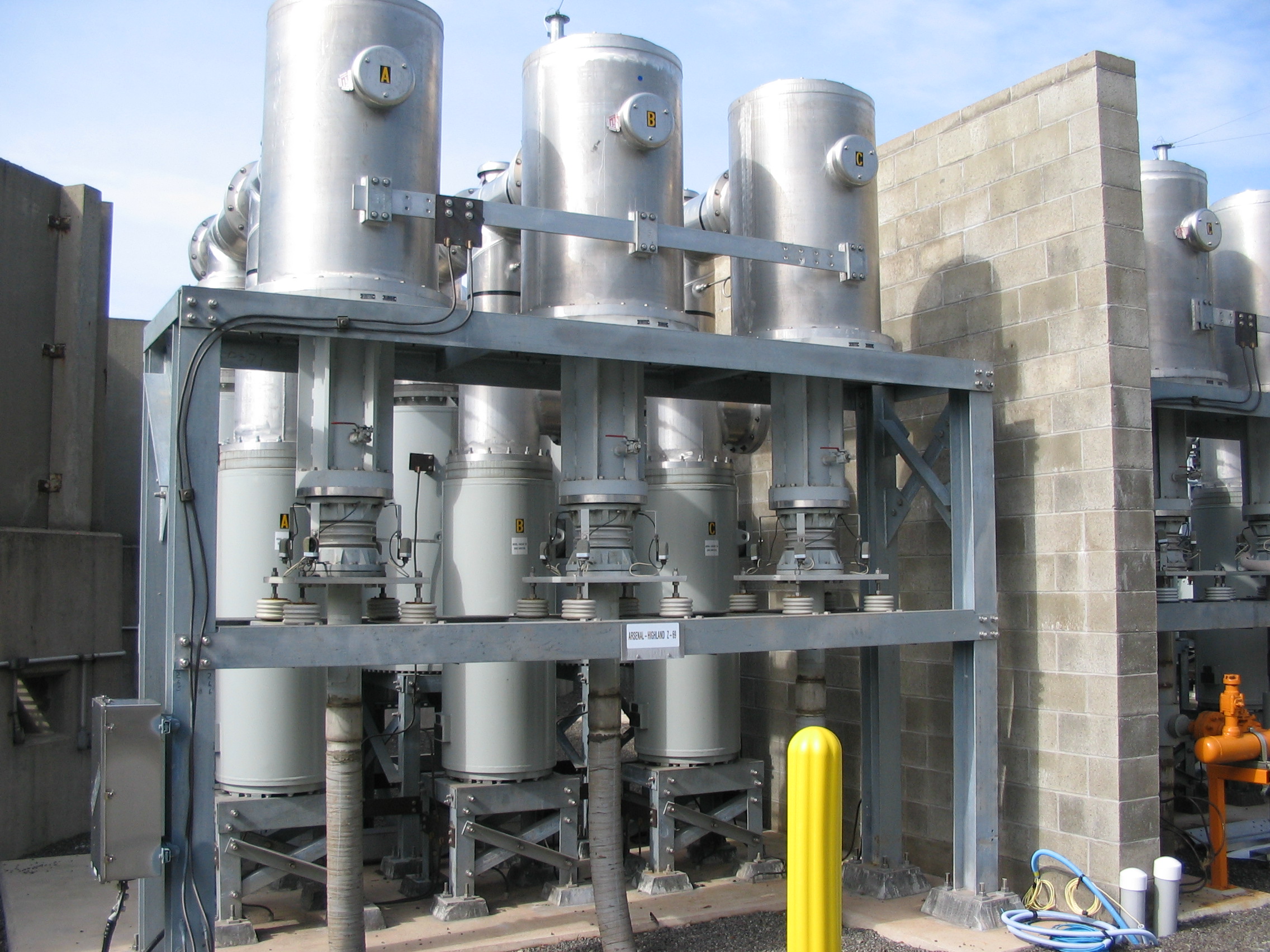

ATA/ATL-SF GIS Termination
Features and Benefits
ATA-SF terminations are designed per IEEE 1300 bringing the security of high-strength porcelain insulation to the gas-insulated environment
ATL line handles pressures ranging from 15psi to 100psi cable pressures
Stress control by paper roll that is perforated in factory ensures correct slopes every installation
Terminations can be designed for both kraft paper or LPP cable insulation types
ATA line handles pressures ranging from 200psi to 400psi cable pressures
